Hopkinton Station 126 Distribution Line
Hopkinton Station 126 Distribution Line
Services Provided
Distribution Ductbank & Vault System Installation – Trenching & Backfill
Location
Hopkinton, MA
Client
Eversource
Owner
Eversource

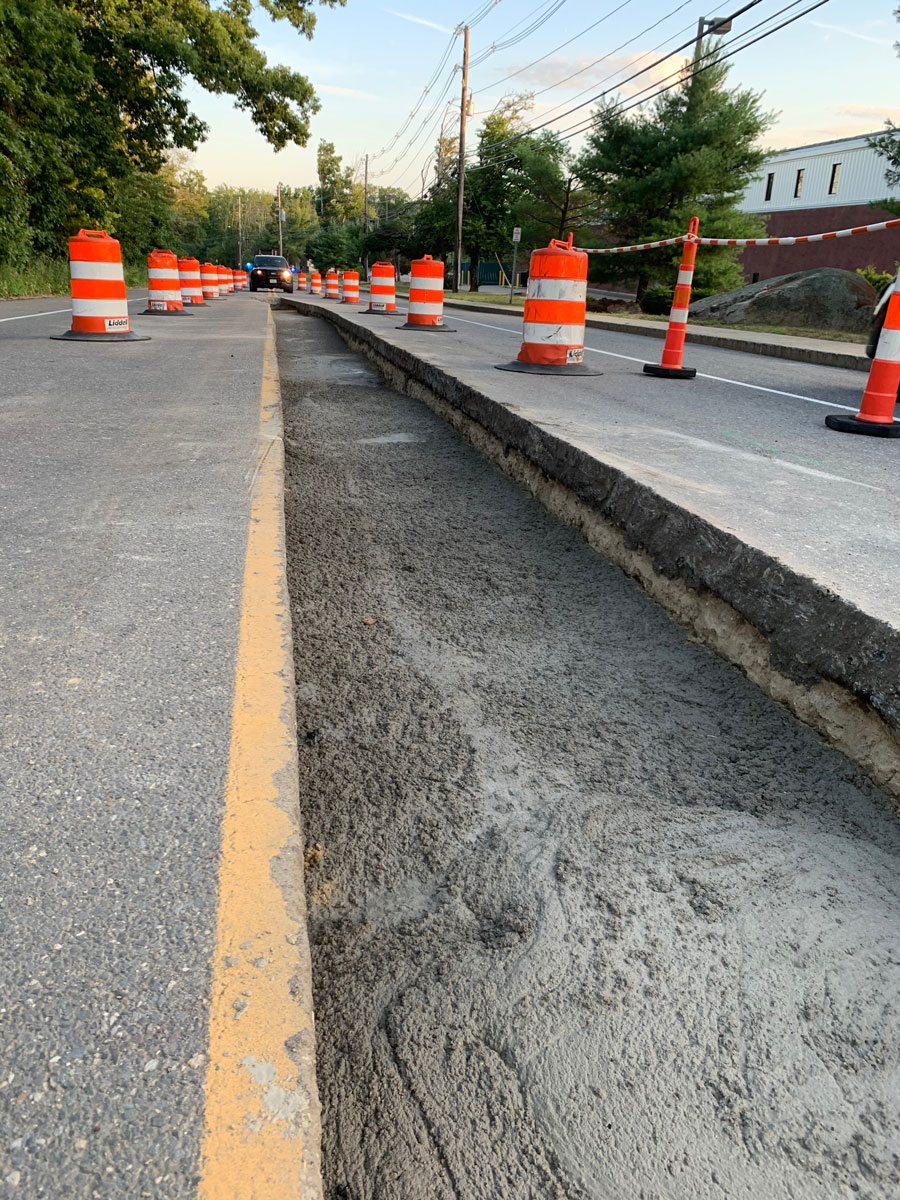

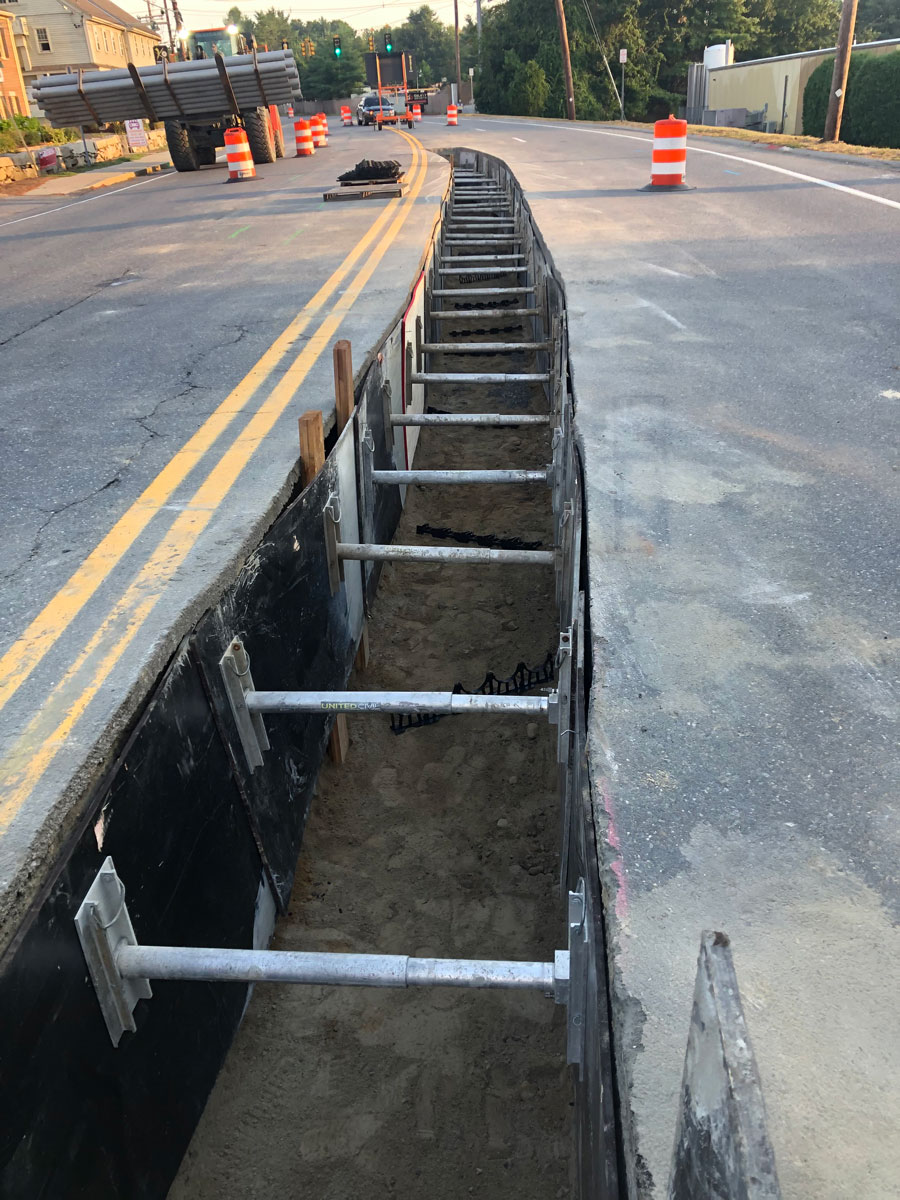

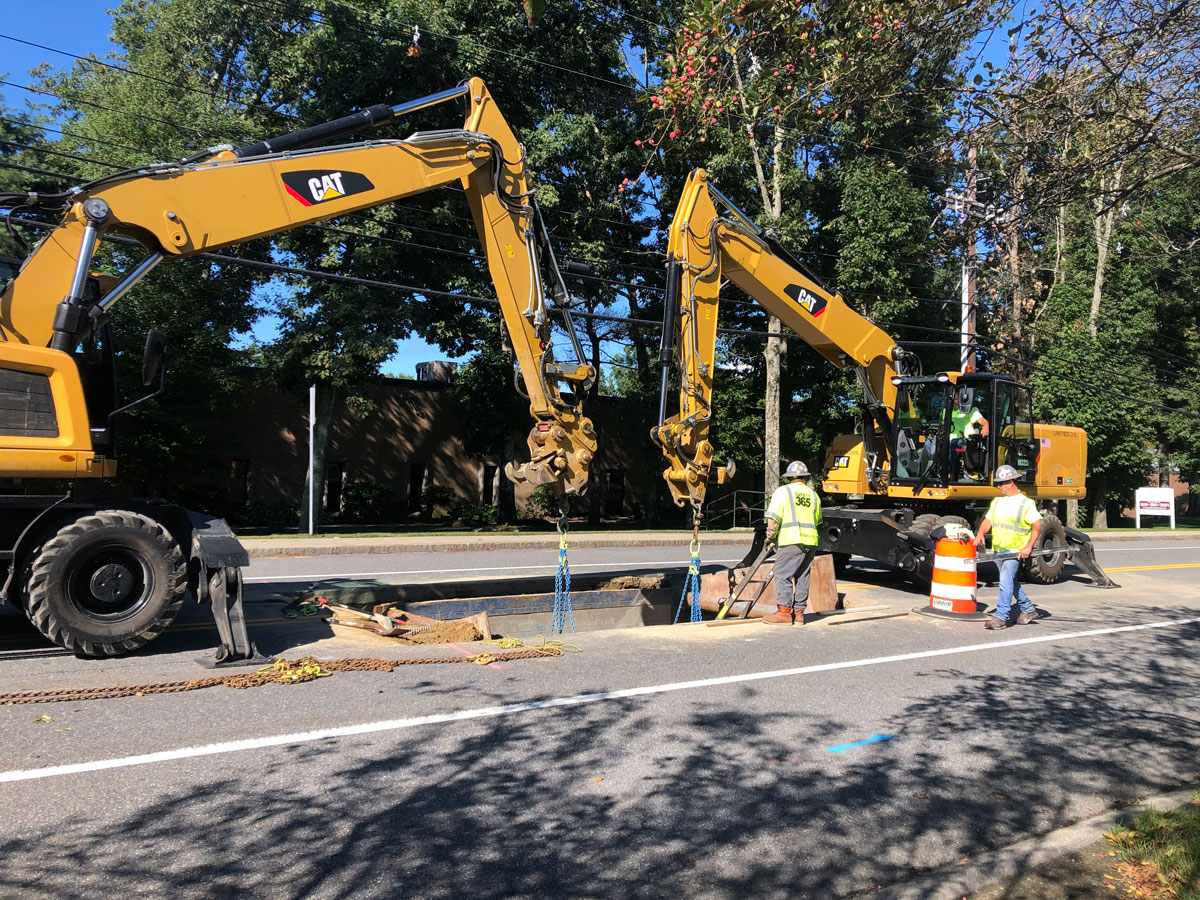

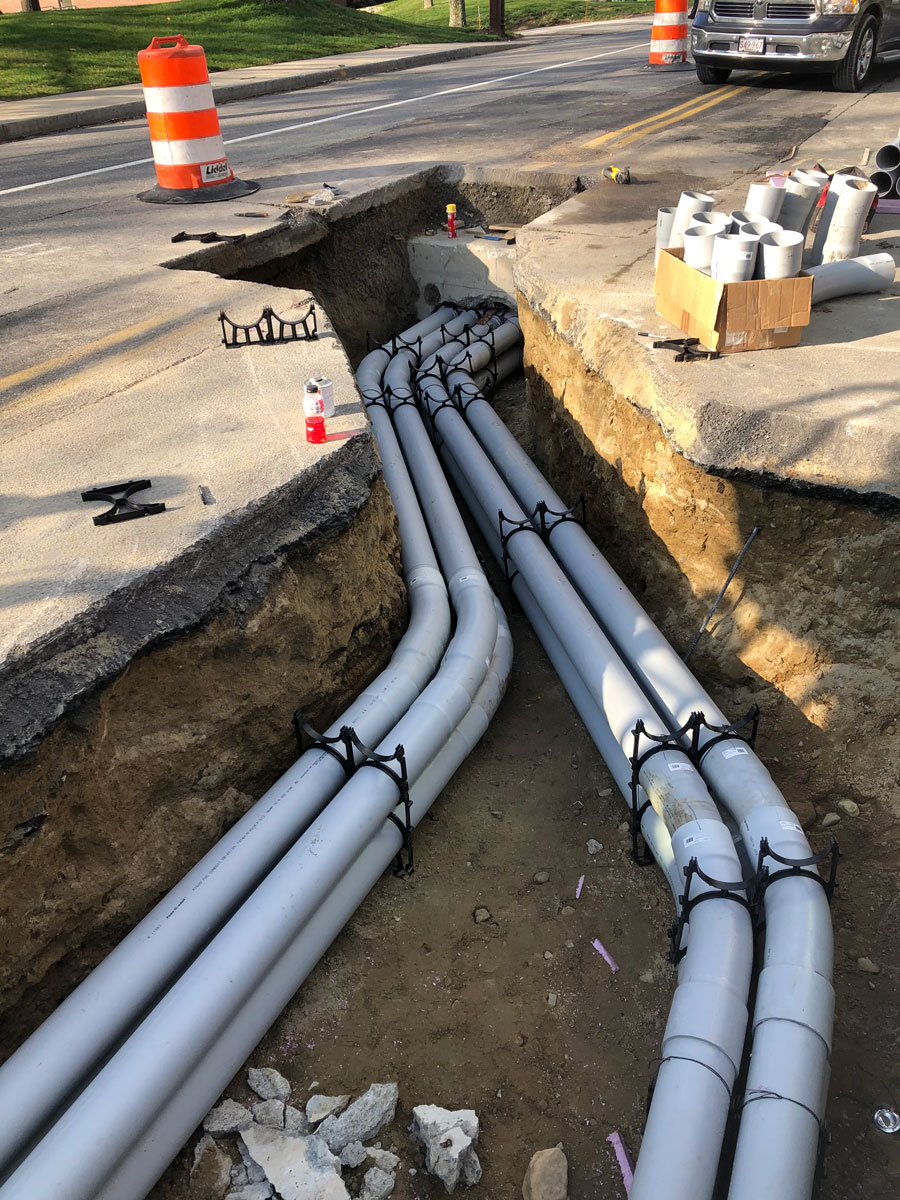

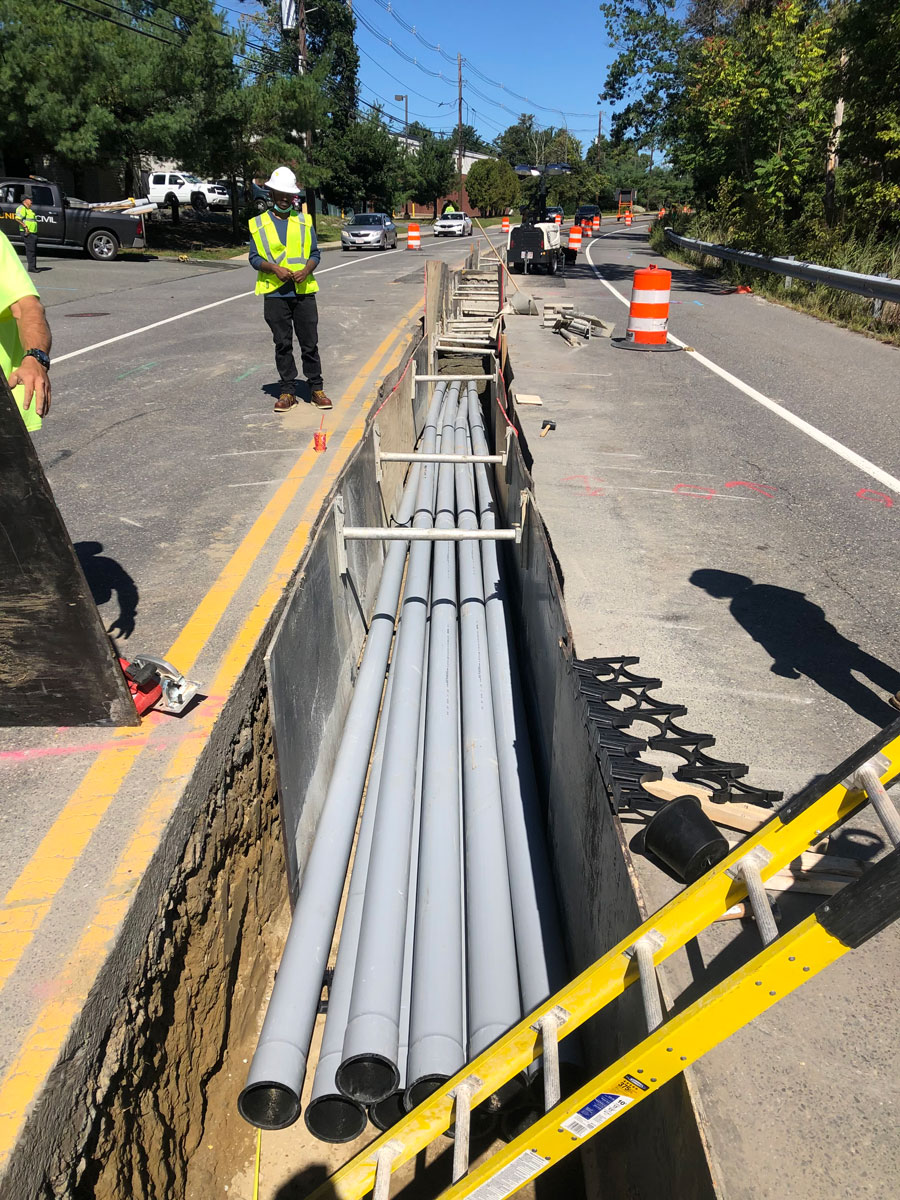

UC was the Prime Contractor on the Hopkinton Station 126 Expansion. Spanning two construction seasons, our scope involved the installation of 2.5 miles of 9-way, and approximately 1,000 feet of supplementary, concrete-encased distribution ductbank, 27-cast in place concrete vaults, averaging 10-12 feet deep.
The heavily traveled business/residential route along South St. and West Main St. was especially challenging, requiring crews to manage impacts to multiple side streets, several intersections, and in one area, Interstate 495 on/off ramps. As a result, we executed the roadwork during nighttime hours while additional support crews maintained our laydown yard and removed stockpiled soil during the day.
Other specifics included avoidance/relocation of existing utilities, soils and water management, and temporary roadway restoration. Work was sequenced to minimize road plating, leaving all areas promptly backfilled for normal weekend travel.
